- Superior biomechanical intramedullary stabilization of tibial fracture

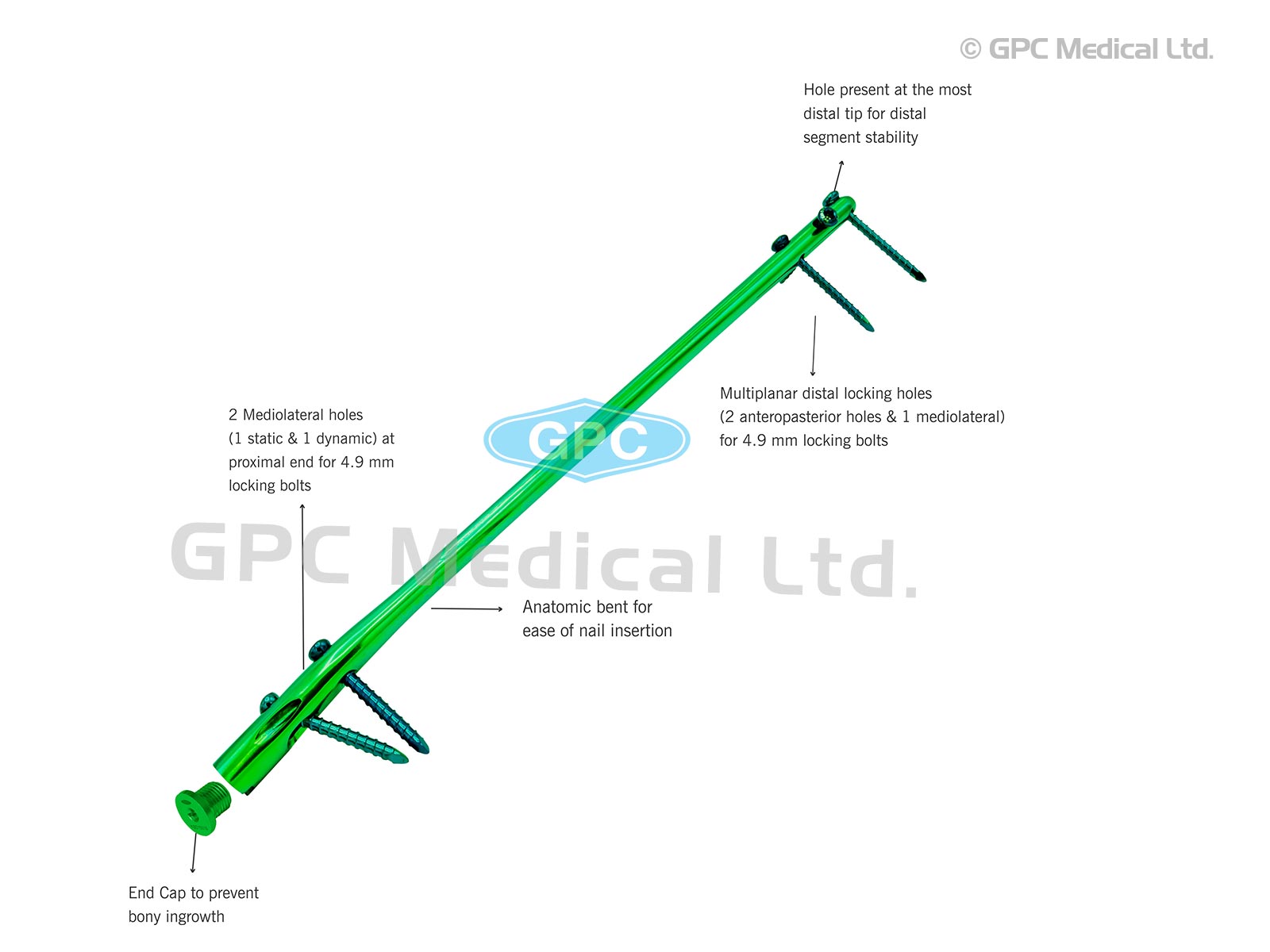

- Distal most screw situated at the distal tip of the nail
- Static and dynamic locking options
- 10 degree Herzog bend in proximal third of nail
- Biplanar distal locking options provide rotational stability
- Small caliber, cannulated implant inserted after reaming helps in reducing the hoop stress formation
- Stability is increased with the reamed technique, because the nail fits snugly in a longer portion of the tibial shaft
- Universal nail for right & left tibia
- Available in both titanium and stainless steel
| Length (mm)
|
Code for Dia. (mm) S.S. |
| 8 |
9 |
10 |
11 |
12 |
13 |
14 |
| 220 |
ITLD08.22 |
ITLD09.22 |
ITLD10.22 |
ITLD11.22 |
|
|
|
| 230 |
ITLD08.23 |
ITLD09.23 |
ITLD10.23 |
ITLD11.23 |
|
|
|
| 240 |
ITLD08.24 |
ITLD09.24 |
ITLD10.24 |
ITLD11.24 |
|
|
|
| 250 |
ITLD08.25 |
ITLD09.25 |
ITLD10.25 |
ITLD11.25 |
|
|
|
| 260 |
ITLD08.26 |
ITLD09.26 |
ITLD10.26 |
ITLD11.26 |
ITLD12.26 |
ITLD13.26 |
ITLD14.26 |
| 270 |
ITLD08.27 |
ITLD09.27 |
ITLD10.27 |
ITLD11.27 |
ITLD12.27 |
ITLD13.27 |
ITLD14.27 |
| 280 |
ITLD08.28 |
ITLD09.28 |
ITLD10.28 |
ITLD11.28 |
ITLD12.28 |
ITLD13.28 |
ITLD14.28 |
| 290 |
ITLD08.29 |
ITLD09.29 |
ITLD10.29 |
ITLD11.29 |
ITLD12.29 |
ITLD13.29 |
ITLD14.29 |
| 300 |
ITLD08.30 |
ITLD09.30 |
ITLD10.30 |
ITLD11.30 |
ITLD12.30 |
ITLD13.30 |
ITLD14.30 |
| 310 |
ITLD08.31 |
ITLD09.31 |
ITLD10.31 |
ITLD11.31 |
ITLD12.31 |
ITLD13.31 |
ITLD14.31 |
| 320 |
ITLD08.32 |
ITLD09.32 |
ITLD10.32 |
ITLD11.32 |
ITLD12.32 |
ITLD13.32 |
ITLD14.32 |
| 330 |
ITLD08.33 |
ITLD09.33 |
ITLD10.33 |
ITLD11.33 |
ITLD12.33 |
ITLD13.33 |
ITLD14.33 |
| 340 |
ITLD08.34 |
ITLD09.34 |
ITLD10.34 |
ITLD11.34 |
ITLD12.34 |
ITLD13.34 |
ITLD14.34 |
| 350 |
ITLD08.35 |
ITLD09.35 |
ITLD10.35 |
ITLD11.35 |
ITLD12.35 |
ITLD13.35 |
ITLD14.35 |
| 360 |
ITLD08.36 |
ITLD09.36 |
ITLD10.36 |
ITLD11.36 |
ITLD12.36 |
ITLD13.36 |
ITLD14.36 |
| 370 |
ITLD08.37 |
ITLD09.37 |
ITLD10.37 |
ITLD11.37 |
ITLD12.37 |
ITLD13.37 |
ITLD14.37 |
| 380 |
ITLD08.38 |
ITLD09.38 |
ITLD10.38 |
ITLD11.38 |
ITLD12.38 |
ITLD13.38 |
ITLD14.38 |
| 390 |
ITLD08.39 |
ITLD09.39 |
ITLD10.39 |
ITLD11.39 |
ITLD12.39 |
ITLD13.39 |
ITLD14.39 |
| 400 |
ITLD08.40 |
ITLD09.40 |
ITLD10.40 |
ITLD11.40 |
ITLD12.40 |
ITLD13.40 |
ITLD14.40 |
| 410 |
ITLD08.41 |
ITLD09.41 |
ITLD10.41 |
ITLD11.41 |
ITLD12.41 |
ITLD13.41 |
ITLD14.41 |
| 420 |
ITLD08.42 |
ITLD09.42 |
ITLD10.42 |
ITLD11.42 |
ITLD12.42 |
ITLD13.42 |
ITLD14.42 |
| 430 |
ITLD08.43 |
ITLD09.43 |
ITLD10.43 |
ITLD11.43 |
ITLD12.43 |
ITLD13.43 |
ITLD14.43 |
| 440 |
ITLD08.44 |
ITLD09.44 |
ITLD10.44 |
ITLD11.44 |
ITLD12.44 |
ITLD13.44 |
ITLD14.44 |
For Titanium, please affix 'T' after above code number.
