- Superior biomechanical intramedullary stabilization of femoral fracture

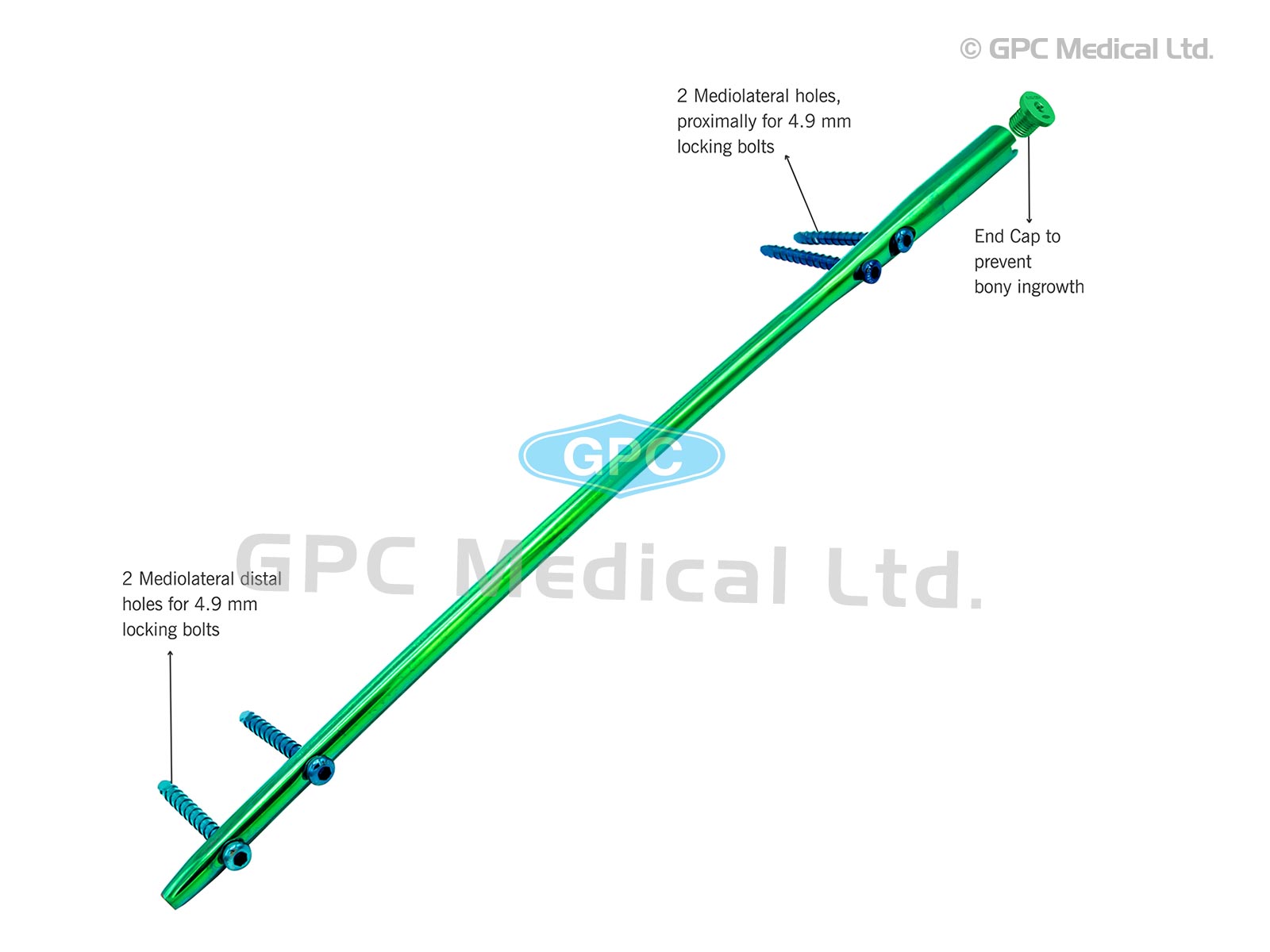

- Static and dynamic locking options
- Cannulated nail enables guide wire controlled insertion
- Cannulated implant inserted after reaming helps in reducing the hoop stress formation with reduced chances of bone splinter
- Final reaming should be 1 mm – 1.5 mm larger than the diameter of the nail to be used as decided by prior templating
- Stability is increased with the reamed technique, because the nail fits snugly in a longer portion of the femoral shaft
- Straight nail without anterior bow gives 3-point fixation stability
- Universal nail for right & left femur
- Available in both titanium and stainless steel
|
Length (cm)
|
Code for Dia. (mm) S.S.
|
|
9
|
10
|
11
|
12
|
13
|
14
|
|
300
|
ILF09.30
|
ILF10.30
|
ILF11.30
|
ILF12.30
|
ILF13.30
|
ILF14.30
|
|
310 |
ILF09.31
|
ILF10.31
|
ILF11.31
|
ILF12.31
|
ILF13.31
|
ILF14.31
|
|
320
|
ILF09.32
|
ILF10.32
|
ILF11.32
|
ILF12.32
|
ILF13.32
|
ILF14.32
|
|
330
|
ILF09.33
|
ILF10.33
|
ILF11.33
|
ILF12.33
|
ILF13.33
|
ILF14.33
|
|
340
|
ILF09.34
|
ILF10.34
|
ILF11.34
|
ILF12.34
|
ILF13.34
|
ILF14.34
|
|
350
|
ILF09.35
|
ILF10.35
|
ILF11.35
|
ILF12.35
|
ILF13.35
|
ILF14.35
|
|
360
|
ILF09.36
|
ILF10.36
|
ILF11.36
|
ILF12.36
|
ILF13.36
|
ILF14.36
|
|
370
|
ILF09.37
|
ILF10.37
|
ILF11.37
|
ILF12.37
|
ILF13.37
|
ILF14.37
|
|
380
|
ILF09.38
|
ILF10.38
|
ILF11.38
|
ILF12.38
|
ILF13.38
|
ILF14.38
|
|
390
|
ILF09.39
|
ILF10.39
|
ILF11.39
|
ILF12.39
|
ILF13.39
|
ILF14.39
|
|
400
|
ILF09.40
|
ILF10.40
|
ILF11.40
|
ILF12.40
|
ILF13.40
|
ILF14.40
|
|
410
|
ILF09.41
|
ILF10.41
|
ILF11.41
|
ILF12.41
|
ILF13.41
|
ILF14.41
|
|
420
|
ILF09.42
|
ILF10.42
|
ILF11.42
|
ILF12.42
|
ILF13.42
|
ILF14.42
|
|
430
|
ILF09.43
|
ILF10.43
|
ILF11.43
|
ILF12.43
|
ILF13.43
|
ILF14.43
|
|
440
|
ILF09.44
|
ILF10.44
|
ILF11.44
|
ILF12.44
|
ILF13.44
|
ILF14.44
|
|
450
|
ILF09.45
|
ILF10.45
|
ILF11.45
|
ILF12.45
|
ILF13.45
|
ILF14.45
|
|
460
|
ILF09.46
|
ILF10.46
|
ILF11.46
|
ILF12.46
|
ILF13.46
|
ILF14.46
|
|
470
|
ILF09.47
|
ILF10.47
|
ILF11.47
|
ILF12.47
|
ILF13.47
|
ILF14.47
|
|
480
|
ILF09.48
|
ILF10.48
|
ILF11.48
|
ILF12.48
|
ILF13.48
|
ILF14.48
|
For Titanium, please affix ‘T’ after above code number.
