Intramedullary Nailing System

Femoral Interlocking Nails

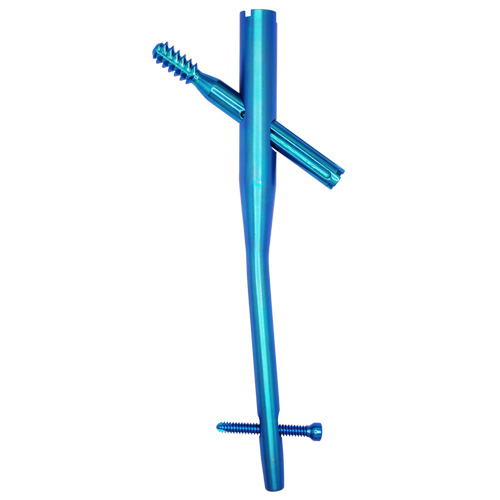

intraHEAL Proximal Hip Stabilizing Nail

Indications:

Intertrochanteric fractures - stable and unstable types
High subtrochanteric fractures
Per subtrochanteric fractures

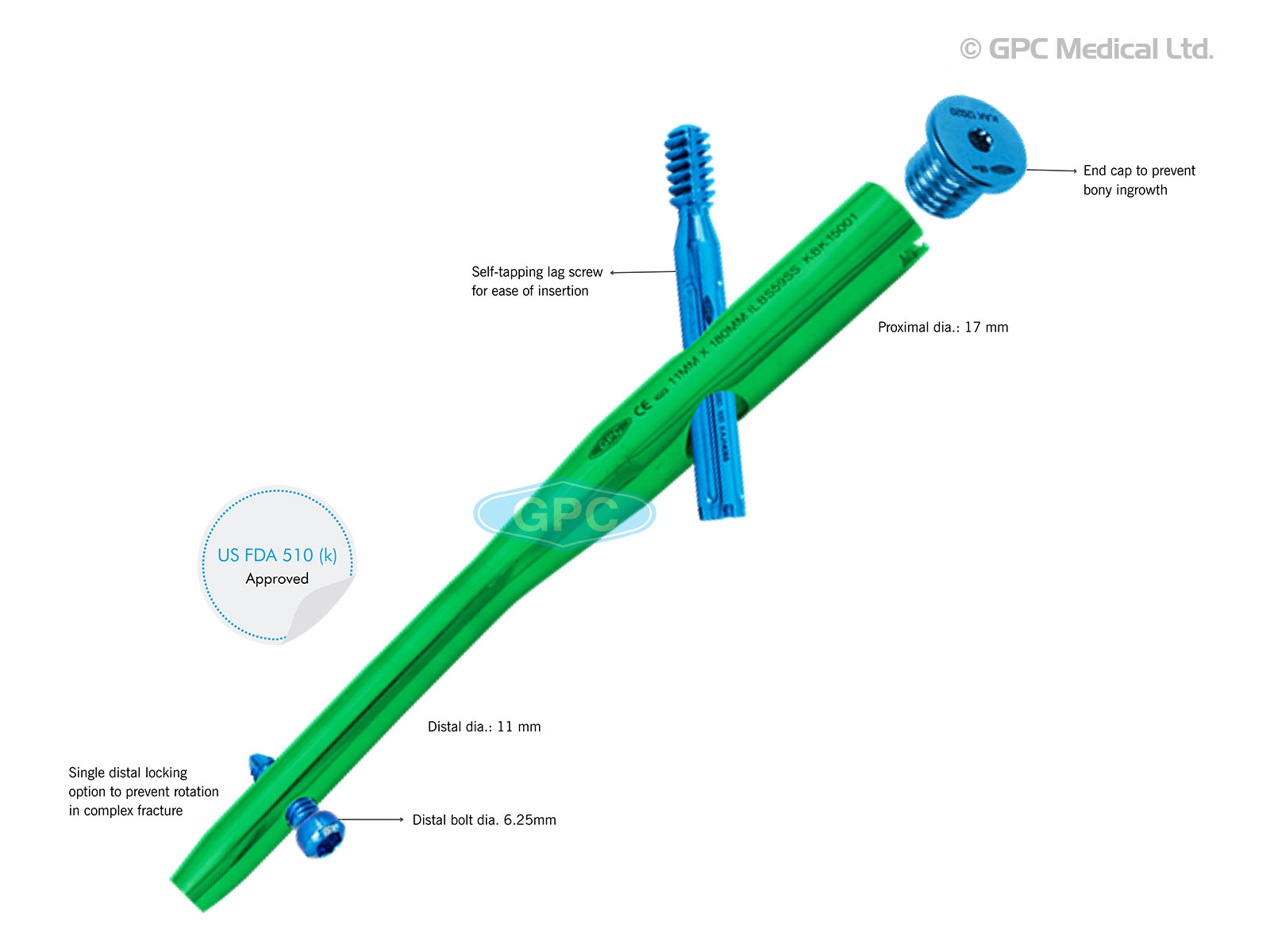

Specifications

Superior biomechanical intramedullary stabilization
Cannulated nail for guide wire controlled insertion

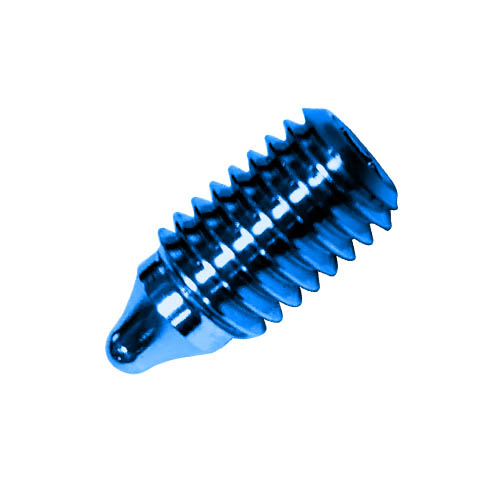

Set screw to inhibit rotation of the proximal lag screw & simultaneously allowing sliding of the lag screw
Nail dia: 17 mm proximal & 11 mm distal
Range of angles: 125°, 130°, 135°
Single distal locking option to prevent rotation in complen fracture
In stable fractures, it provides circumferential compression at the fracture site and transferring axial load to the bone
Nail length available: 180mm, 200mm, 220mm
Self-tapping lag screw for easy insertion
Single targeting device for proximal & distal locking
Universal nail for right & left hip
Available in both titanium and stainless steel

Length (mm)	Code for Dia. (mm) S.S.
Length (mm)	10	11	12
180	ILBS59.10.18	ILBS59.11.18	ILBS59.12.18
200	ILBS59.10.20	ILBS59.11.20	ILBS59.12.20
220	ILBS59.10.22	ILBS59.11.22	ILBS59.12.22

Length (mm)	Code for Dia. (mm) Titanium
Length (mm)	10	11	12
180	ILBS59.10.18T	ILBS59.11.18T	ILBS59.12.18T
200	ILBS59.10.20T	ILBS59.11.20T	ILBS59.12.20T
220	ILBS59.10.22T	ILBS59.11.22T	ILBS59.12.22T

Instrumentation:

View Detail

Related Products

intraHEAL Proximal Femoral Nail
Model No:- PFN09-12

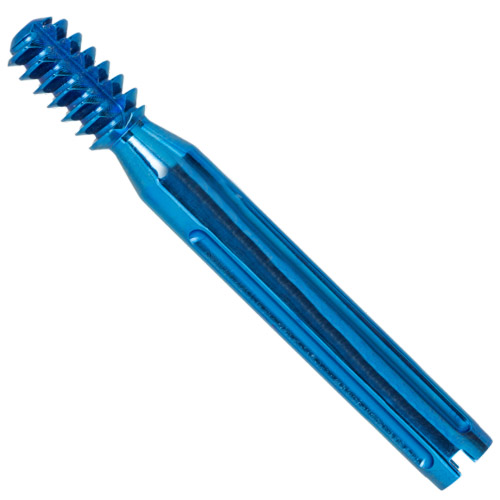

Cephalic Screw intraHEAL Proximal Hip Stabilizing Advanced Nail (PHA), Self Tapping - Titanium
