Large Fragment Plating System

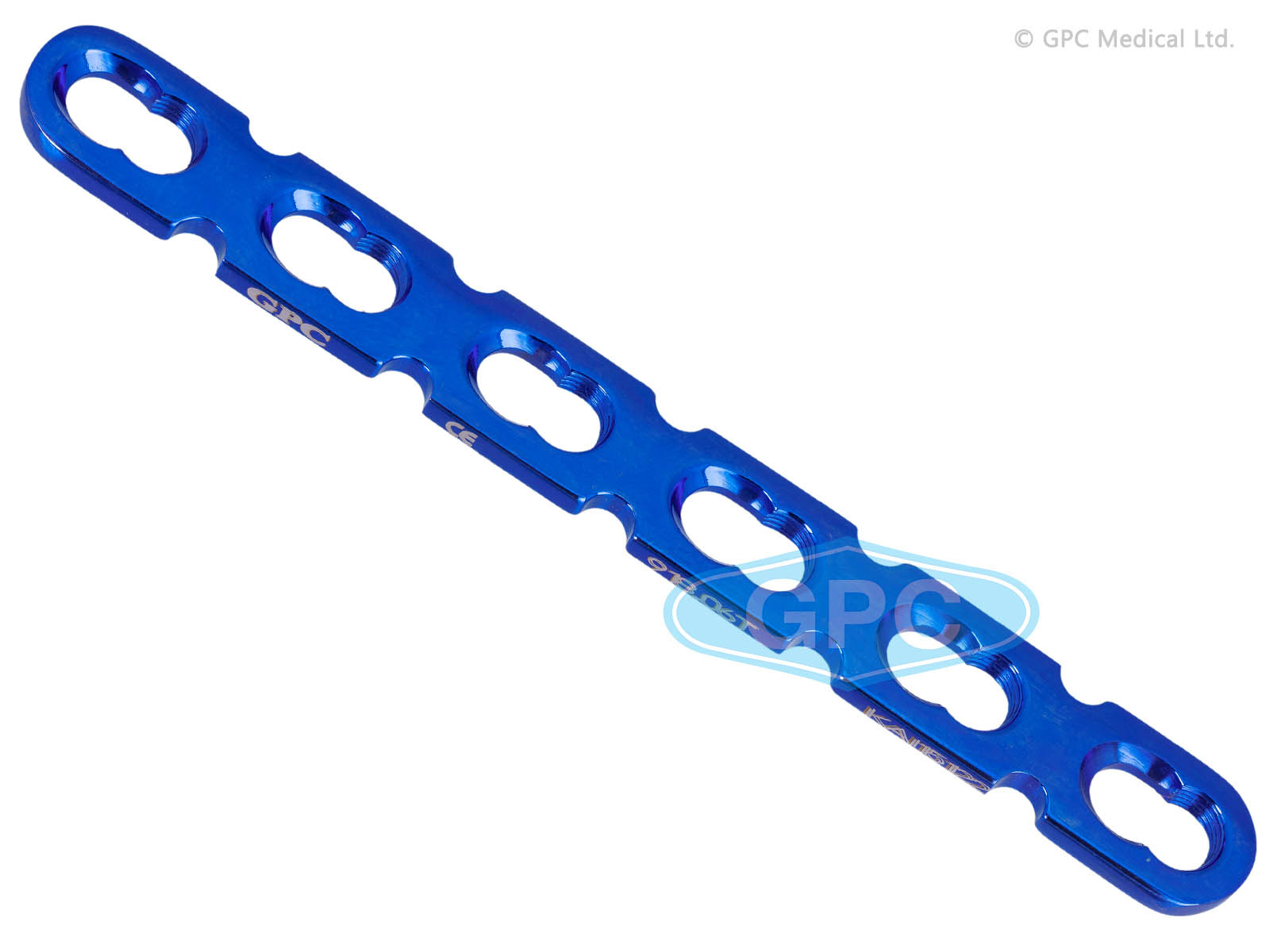

fixLOCK Reconstruction Plate, 4.5 mm

Indications:

Clavicle
Scapula
Olecranon
Humerus
Radius
Ulna
Pelvis
Distal tibia
Fibula

Specifications

Easily contoured and moulded according to the surgeons requirement
Low profile construct for minimum implant prominence
Uniform stiffness of all segments, prolonging fatigue life of the implant
Smaller area of post-fixation avascularity
The combination of conventional and locking screws offers optimum fixation regardless of bone density
Available in both Titanium & Stainless steel

No. of Holes	Length (mm)	CODE
No. of Holes	Length (mm)	S.S.	Titanium
4	58	918.04	918.04T
5	70	918.05	918.05T
6	82	918.06	918.06T
7	94	918.07	918.07T
8	106	918.08	918.08T
9	118	918.09	918.09T
10	130	918.10	918.10T
11	142	918.11	918.11T
12	154	918.12	918.12T
13	166	918.13	918.13T
14	178	918.14	918.14T
15	190	918.15	918.15T
16	190	918.16	918.16T
