Large Fragment Plating System

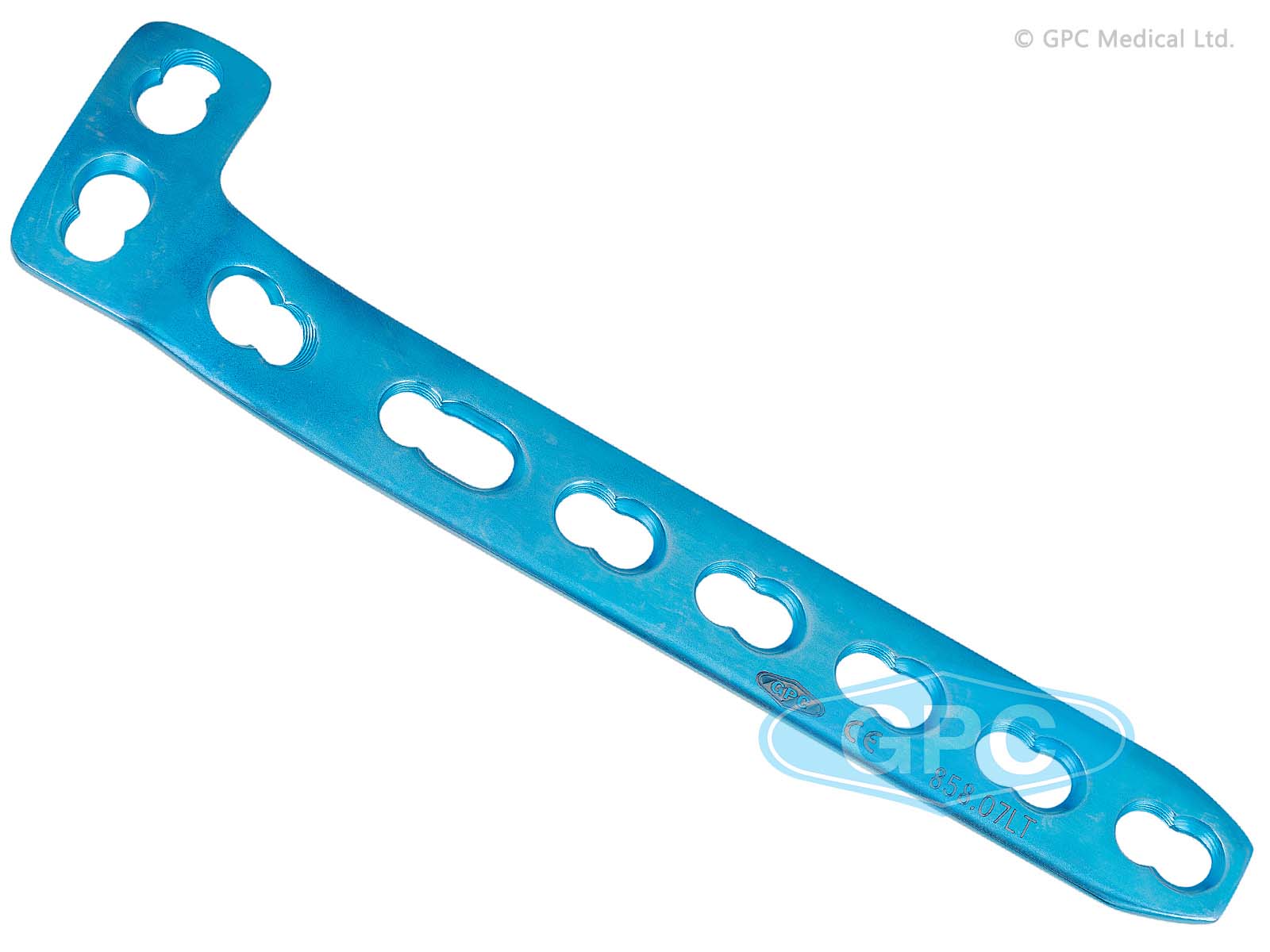

fixLOCK T-Buttress Plate, 4.5 mm

Indications:

Lateral tibial plateau fracture
Medial tibial plateau fracture
Proximal humeral fracture
Ideal to buttress small metaphyseal fragment with the diaphysis

Specifications

Anatomically contoured, for right & left side
Low profile construct with minimum implant prominence or soft tissue irritation
Metaphyseal "L" segment with two combination holes for 5.0 mm fixLOCK screws or 4.5 mm cortical screws
Shaft holes for 5.0 mm fixLOCK or 4.5 mm cortical screws
No undercuts present
Long plates useful in cases of diaphyseal extension of periarticular fractures
Available in both Titanium & Stainless steel

No. of Holes	Stainless Steel		Titanium
No. of Holes	Code- Left	Code- Right	Code- Left	Code- Right
3	858.03L	858.03R	858.03TL	858.03TR
4	858.04L	858.04R	858.04TL	858.04TR
5	858.05L	858.05R	858.05TL	858.05TR
6	858.06L	858.06R	858.06TL	858.06TR
7	858.07L	858.07R	858.07TL	858.07TR
8	858.08L	858.08R	858.08TL	858.08TR
9	858.09L	858.09R	858.09TL	858.09TR
10	858.10L	858.10R	858.10TL	858.10TR
11	858.11L	858.11R	858.11TL	858.11TR
