Small Fragment Plating System

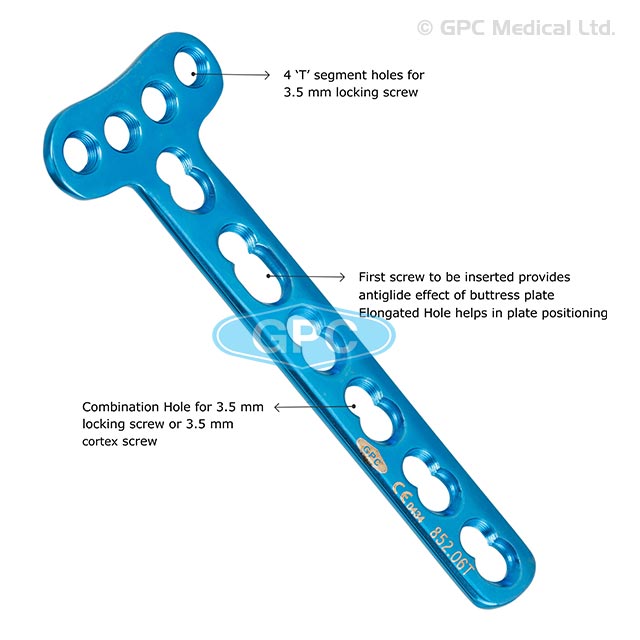

fixLOCK T-Plate with 4 Head Holes, 3.5 mm

Indications:

Juxtaarticular fractures distal humerus, distal tibia, proximal tibia, distal femur
Volar Barton fracture
Palmarly/Dorsally displaced extra-articular fractures distal end radius
Posteromedial fragment proximal tibia

Specifications

Low profile construct with minimum implant prominence or soft tissue irritation
Thin plate profile easy to contour
Uniform stiffness of all segments, prolonging fatigue life of the implant
Smaller area of post-fixation avascularity
Available in both Titanium & Stainless steel

No. of Holes	Code
No. of Holes	S.S.	Titanium
4	852.04	852.04T
5	852.05	852.05T
6	852.06	852.06T
7	852.07	852.07T
8	852.08	852.08T
