Mini Fragment Plating System

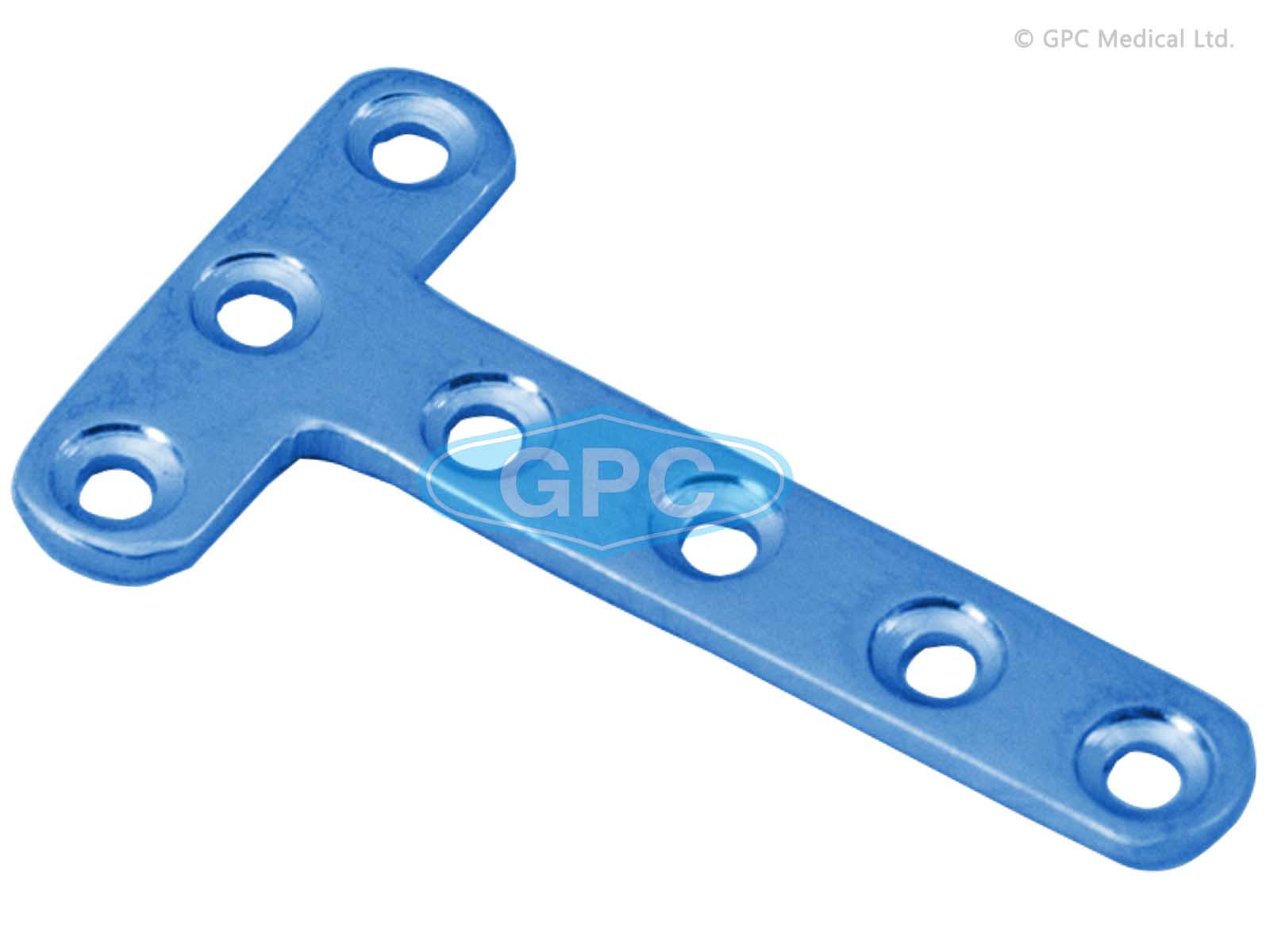

T- Plate 1.5

Indications:

Periarticular fractures of the middle and proximal phalanx
Osteotomies and nonunions of phalanges
For fixation of head of radius

Specifications

Features

Head of the plate is fixed first in metaphysis and its shaft in the diaphysis
T profile for additional fixation in phalanges
Minimal soft tissue irritation
Can be bent according to the contour of bone
Provides rigid fixation in periarticular region
Axial compression of the fracture fragments can be achieved by eccentric placement of the screws
Fixed with 1.5 mm cortex screws
Available in both Titanium and Stainless Steel

Profile

Thickness (T): 1 mm
Width (W): 5 mm
Hole Spacing (HS): 5 mm

No. of Holes	CODE
No. of Holes	S.S.	Titanium
3	675.03	675.03T
4	675.04	675.04T
5	675.05	675.05T
