Small Fragment Plating System

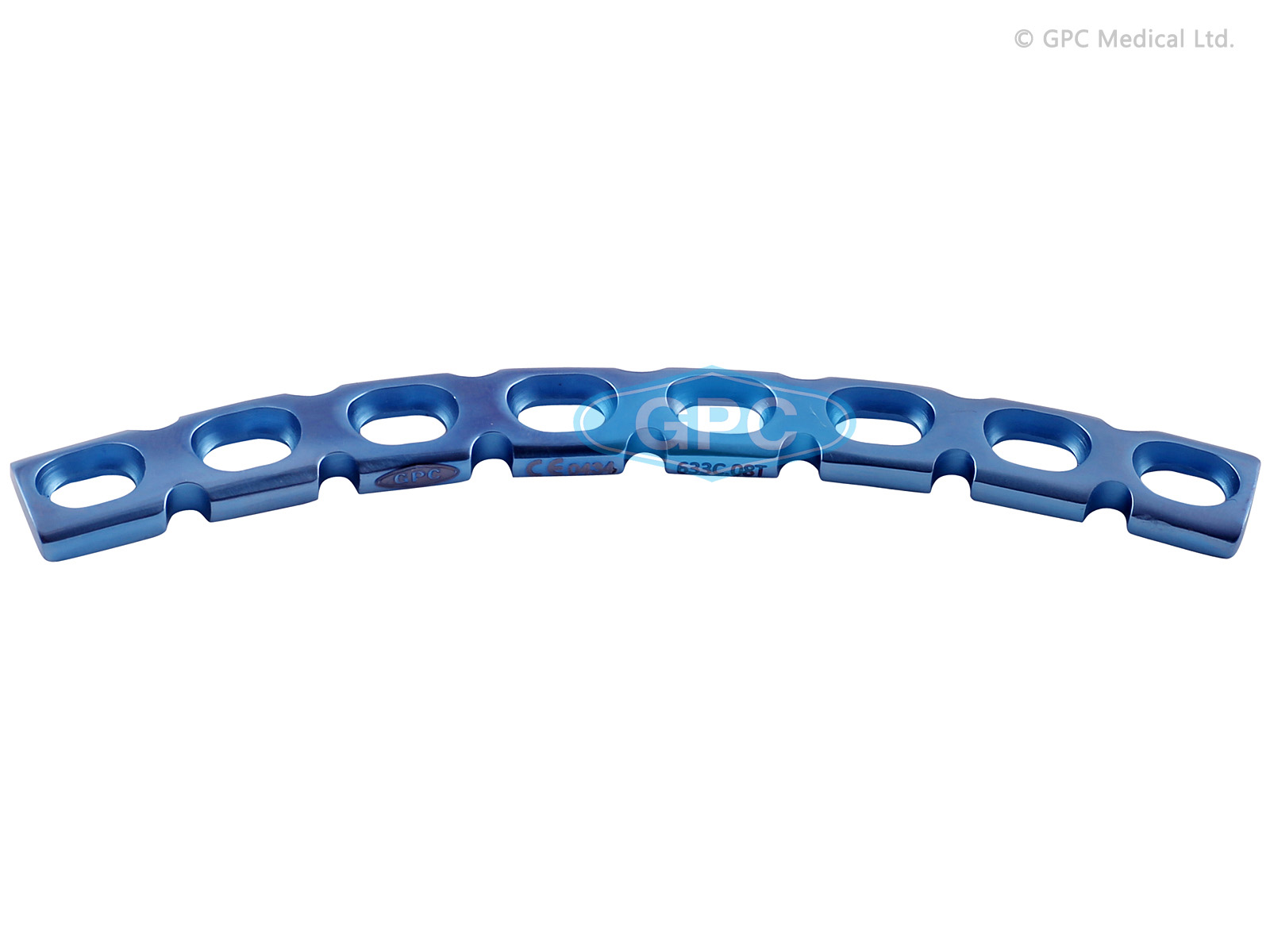

Reconstruction Plate, 3.5mm - Curved

Indications:

Used in the reconstruction of pelvic fractures

Specifications

Features

Precurved to match the bone anatomy of pelvis
Used in fractures with complex three dimensional geometry
Used with 3.5 mm cortex screws and 4.0 mm cancellous screws
Available in both Titanium and Stainless Steel

Profile

Thickness (T): 2.8 mm
Width (W): 10 mm
Hole Spacing (HS): 12 mm

No. of Holes	CODE
No. of Holes	S.S.	Titanium
5	633C.05	633C.05T
6	633C.06	633C.06T
7	633C.07	633C.07T
8	633C.08	633C.08T
9	633C.09	633C.09T
10	633C.10	633C.10T
11	633C.11	633C.11T
12	633C.12	633C.12T
13	633C.13	633C.13T
14	633C.14	633C.14T
