Small Fragment Plating System

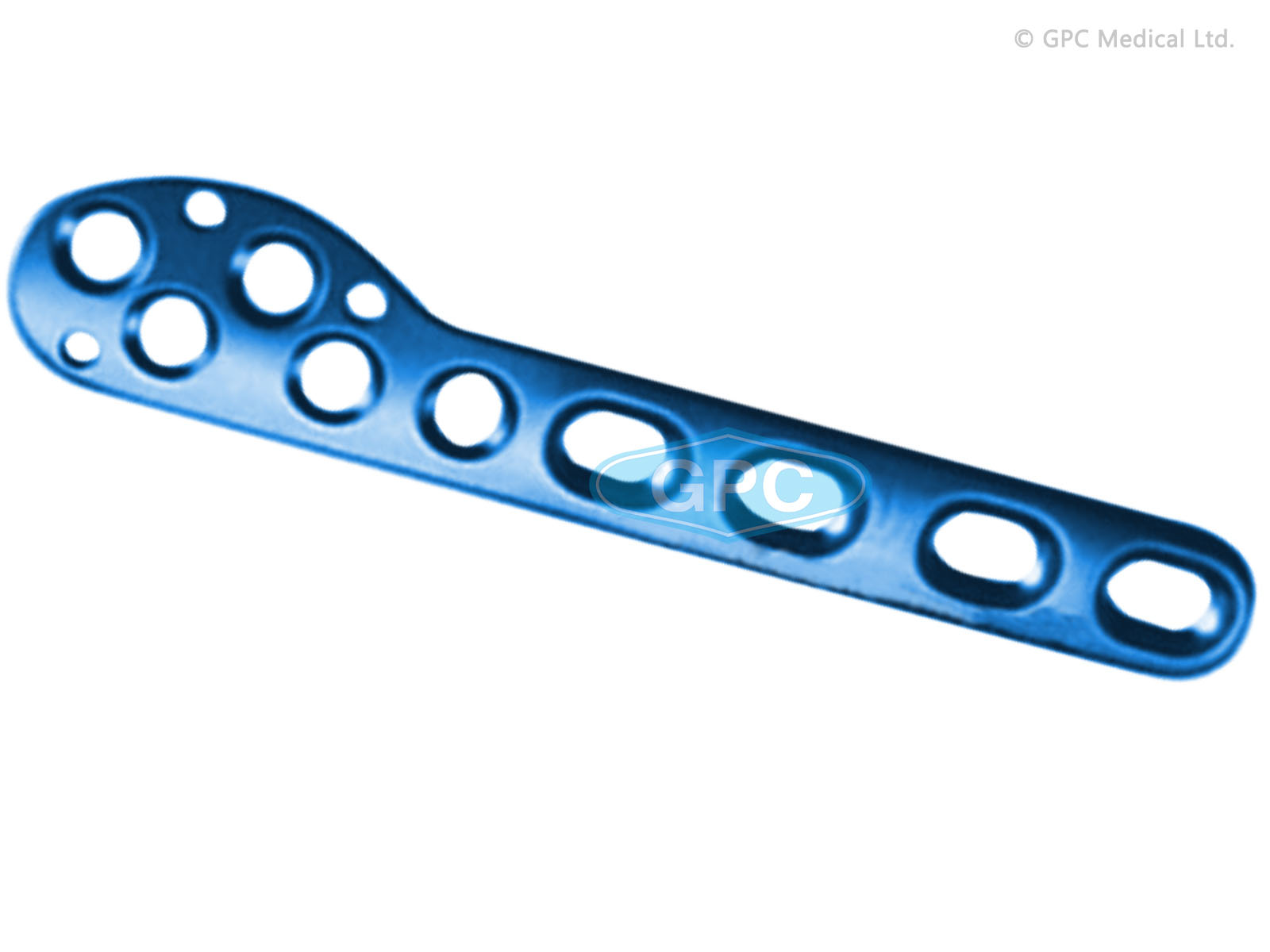

Distal Lateral Fibula Plate, 3.5 mm

Indications:

Distal fibula fractures
Non-unions of metaphyseal and diaphyseal region of distal fibula

Specifications

Features

Side specific- separate for left and right
5 head holes fixed with 2.7 mm cortex screws and shaft holes fixed with 3.5 mm cortex screws
Available in both Stainless Steel and Titanium

Profile:

Thickness (T): 3 mm
Width (W): 10 mm

No. of Holes	CODE - Left		CODE - Right
No. of Holes	S.S.	Titanium	S.S.	Titanium
3	620.03L	620.03TL	620.03R	620.03TR
4	620.04L	620.04TL	620.04R	620.04TR
5	620.05L	620.05TL	620.05R	620.05TR
6	620.06L	620.06TL	620.06R	620.06TR
7	620.07L	620.07TL	620.07R	620.07TR
