DHS Short Barrel Plate 4.5 mm, 135° Manufacturer, Supplier & Exporter

Indications:

Features

Provides controlled collapse and compression of fracture fragments
Dynamic action reduces incidence of screw cut out and penetration of screw into hip joint
Stable fixation and prevents undue stress concentration on the implant
Used with DHS lag screw Dia. 12.5 mm and compression screw of length 36 mm
Dynamic compression holes allow compression of fracture fragment
Shaft compression holes fixed with cortex screw 4.5 mm
Available in both Titanium and Stainless Steel

No. of Holes	Code
	Stainless Steel
	125°	130°	135°	140°	145°	150°
2	610SB.125.02	610SB.130.02	610SB.135.02	610SB.140.02	610SB.145.02	610SB.150.02
3	610SB.125.03	610SB.130.03	610SB.135.03	610SB.140.03	610SB.145.03	610SB.150.03
4	610SB.125.04	610SB.130.04	610SB.135.04	610SB.140.04	610SB.145.04	610SB.150.04
5	610SB.125.05	610SB.130.05	610SB.135.05	610SB.140.05	610SB.145.05	610SB.150.05
6	610SB.125.06	610SB.130.06	610SB.135.06	610SB.140.06	610SB.145.06	610SB.150.06

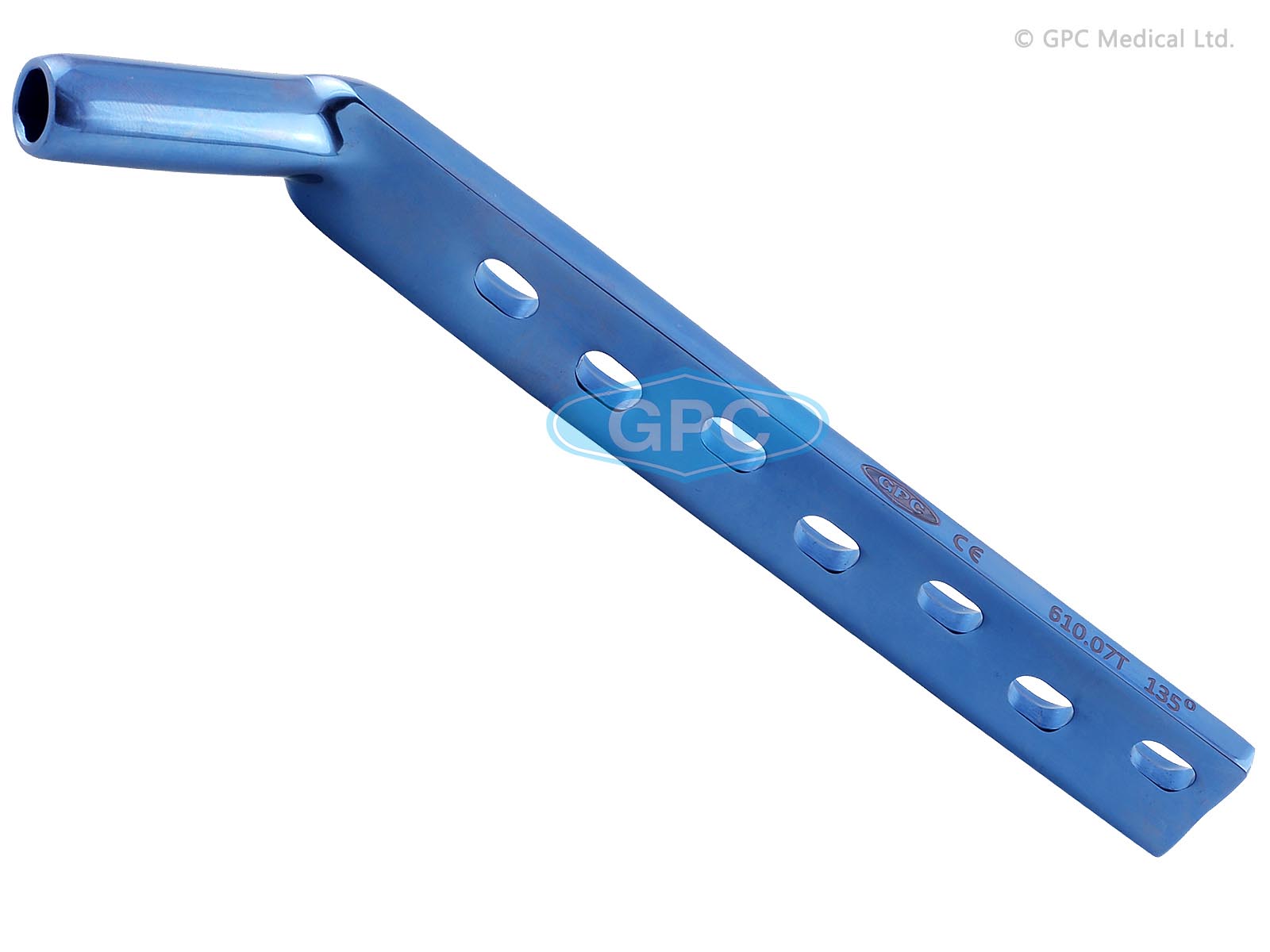

DHS Short Barrel Plate 4.5 mm, 135°
